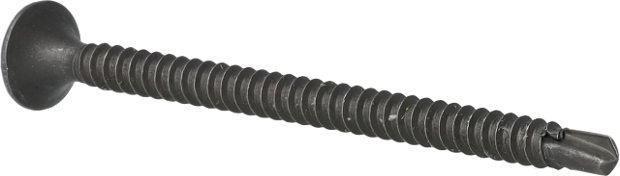

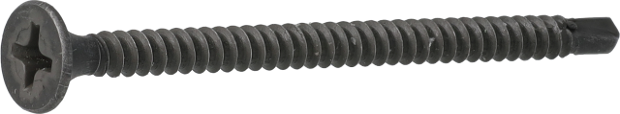

Gipsplaatschroef voor staal tot 3,0mm PH2 gefosfateerd 3,5x25mm

tap image to zoom

Omschrijving

Gipsplaatschroef voor staal tot 3,0mm, gefosfateerd

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14566:2008+A1:2009

Informatie aanvragen

Specificaties

Artikelnummer: 35Q25MP
GTIN: 8715274251950

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte
Rotaties per minuut: 2300, 2500, 3000, 3300 RPM

Afwerking: Gefosfateerd (grijs)
Toepassingsomgeving: Binnen
Punt type: Zelfborend
Punthoek: 110 °
Schroef type kop: Trompetkop
Schroef recess: Philips 2
Schroefdraad type: Fijn
Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 25.0 mm
Schroefdiameter: 3.5 mm

DOP No: 35Q25MP
Service klasse: 1
Binnendraad diameter: 2.65 mm
Draadlengte: 18.2 mm
Geharmoniseerde norm: EN 14566:2008+A1:2009

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Nettogewicht: 3.0 kg

Verwant gereedschap

Downloads

35Q25MP_nl_CommercialProductSheet_1.1_1750119215371 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
