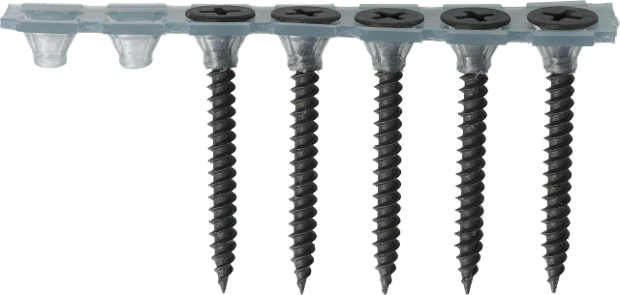

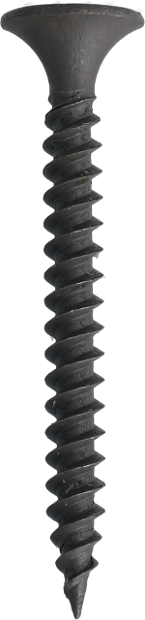

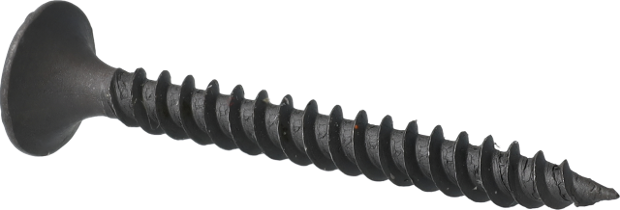

Gipsplaatschroef voor metaal stud PH2 gefosfateerd 3,5x55mm

tap image to zoom

Omschrijving

Gipsplaatschroef voor metal stud, gefosfateerd

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14566:2008+A1:2009

Informatie aanvragen

Specificaties

Artikelnummer: 35B55MP
GTIN: 8715274242071

Technische specificaties

Verbindingstype: Plastic gebonden
Draad materiaal: Carbon met standaard treksterkte
Rotaties per minuut: 3300, 4000, 5000 RPM

Afwerking: Gefosfateerd (grijs)
Toepassingsomgeving: Binnen
Punt type: Scherpe
Punthoek: 23 °
Schroef type kop: Trompetkop
Schroef recess: Philips 2
Schroefdraad type: Fijn
Aantal bevestigingsmiddelen per strip/rol: 50 - 50
Schroeflengte: 55.0 mm
Schroefdiameter: 3.5 mm

DOP No: 35B55MP
Service klasse: 1
Binnendraad diameter: 2.65 mm
Draadlengte: 50.5 mm
Geharmoniseerde norm: EN 14566:2008+A1:2009

Niet-technische specificaties

Verpakkingshoeveelheid: 1000

Verwant gereedschap

Downloads

35B55MP_nl_CommercialProductSheet_1.2_1750114339567 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
